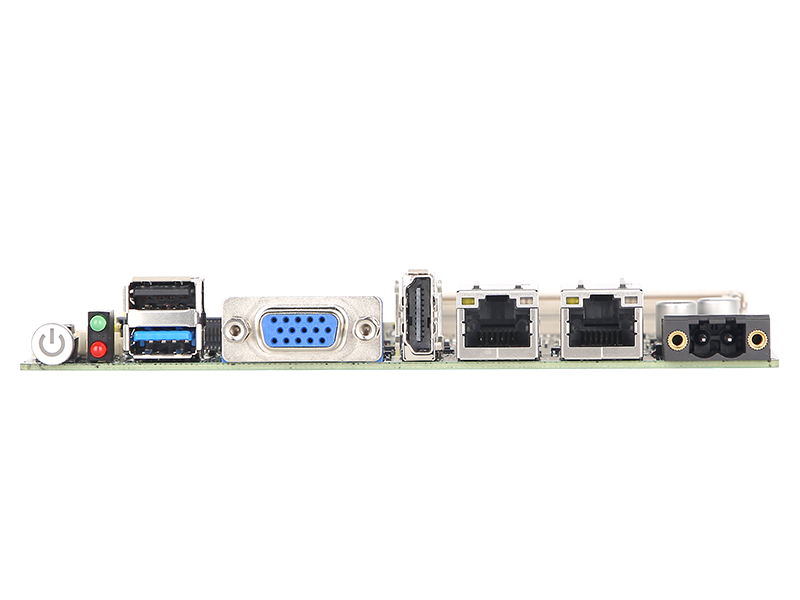

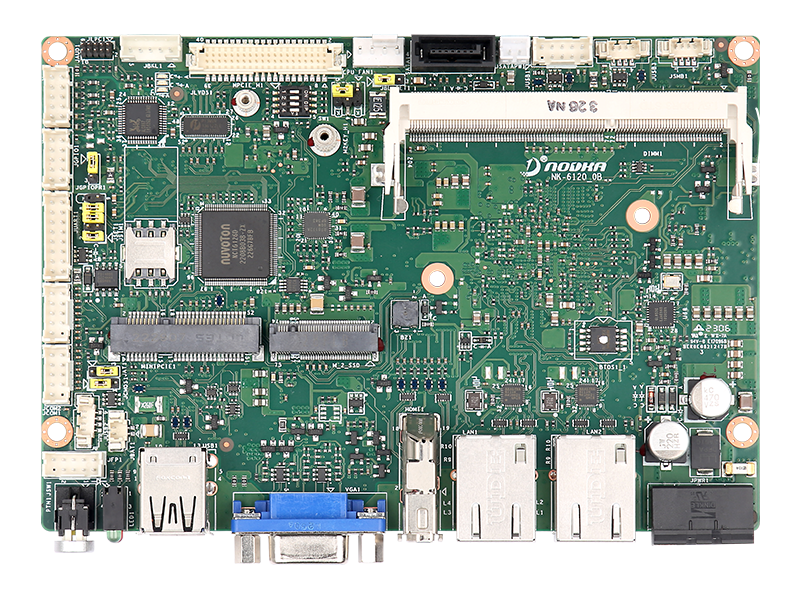

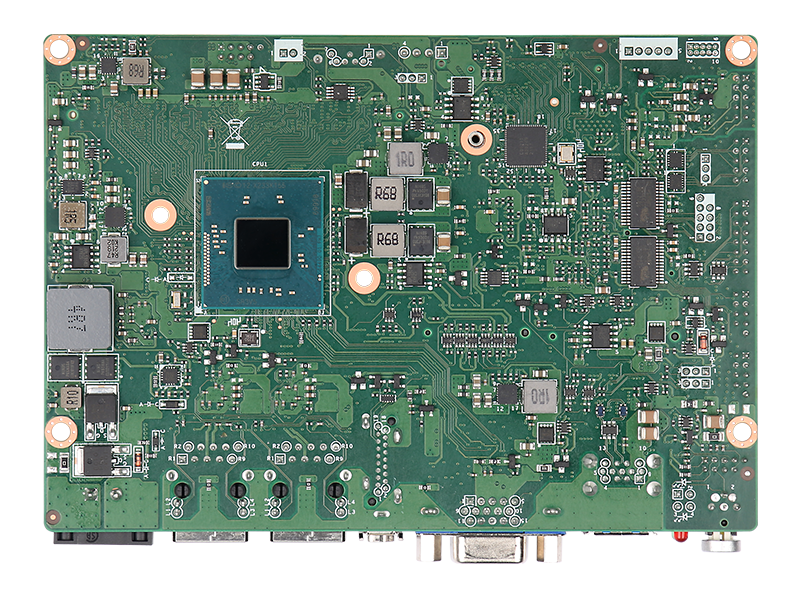

3.5寸嵌入式主板J1900/DDR3L/2GbE/2COM/3USB
J1900/DDR3L/2GbE/2COM/3USB
·Intel? Celeron? J1900 processor, Quad-core, base frequency 2.0GHz，TDP 10W
·Support 1x DDR3L-1333MHz SO-DIMM slot, up to 8GB
·Support VGA, HDMI, LVDS/eDP Dual-display
·2 x Giga-bit Ethernet
·1 x USB3.0 port, 5 x USB2.0 ports
·1 x RS232/485, 1 x RS232, 4 x TTL
·1 x M.2-2242 and 1 x Mini-PCIe slot with nano-SIM card socket
·12~24V power input, lockable DC-IN phoenix terminal block
Product Details
| 處理器 | |
| CPU | ?Intel? Celeron? J1900 processor 2.0GHz，TDP 10W |
| 芯片組 | ?Intel? SoC integrated |
| BIOS | ?AMI 64Mb UEFI BIOS |
| 內存 | |
| 技術 | ?Single Channel(Non-ECC) DDR3L 1333MHz, up to 8GB |
| 插槽 | ?1 x DDR3L 240-pin SO-DIMM slot |
| 存儲 | |
| SATA | ?1 x SATA2.0 port |
| M.2 | ?1 x M.2-2242 M Key SSD slot(SATA2.0) |
| 圖形 | |
| 控制器 | ?HD graphics integrated |
| 音頻 | |
| 編碼器 | ?Realtek ALC888S Colay ALC897codec |
| 外部接口 | |
| 顯示 | ?1 x VGA, resolution up to 2560×1600@60Hz，1 x HDMI, resolution to 1920×1080@60Hz |
| 網絡 | ?2 x GbE(RJ45), Realtek 8111H controller，USB1 x USB3.0(5Gbps), 1 x USB2.0(480Mbps) |
| 開關按鍵 | ?1 x Power Button(white for power on,Black for sleep mode,off for power off) |
| 指示燈 | ?1 x SATA LED(Red)，1 x Power LED(Green) |
| 內部接口 | |
| 顯示 | ?1 x LVDS, dual channel 24/48bit, resolution up to 1920×1200@60Hz；1 x eDP1.3，max resolution up to 3840×2160@60Hz(share connector with LVDS) |
| 音頻 | ?1 x Audio wafer(Mic-in/Line-out, 2*5pin) |
| USB | 2 x USB2.0 wafer(1*4pin)，2 x USB2.0 wafer(1 x 2*5pin) |
| 串口 | ?1 x RS232/485 wafer, 1 x RS232 wafer,4 x TTL |
| 風扇 | ?1 x Smart Fan wafer(1*4pin) |
| SMbus | 1 x SMbus wafer(1*4pin) |
| LPC | ?1 x LPC header for debug |
| 其他 | ?1 x Front panel wafer(2*5pin)(Power LED, HDD LED, Power button, Reset button) |
| 擴展接口 |
| Mini-PCIe slot | 1 x Mini-PCIe slot with Nano-SIM socket (PCIe/USB2.0) |
| 看門狗定時器 | |
| 輸出&間隔 | System reset, programmable from 1~255 seconds |
| 電源 | |
| 類型 | 12~24V DC input，+/-10% tolerance |
| 接口 | 1 x 2-pin phoenix terminal block |
| 功耗 | 16.3W (Idle mode), 17.5W(Typical mode) |
| 操作系統 | |
| MS | Windows Windows7/10 |
| Linux | ?Linux |
| 機械參數 | |
| 尺寸 | ?(L)146mm x (W)102mm |
| 凈重 | 0.8kg |
| 環境 | |
| 溫度 | Operating：-10℃~60℃ with SSD,Storage：-40℃~85℃ |
| 濕度 | 5~95% (Non-condensing) |
| 振動 | 5~500Hz，3Grms operating |
